3-32V DC input control zero voltage turn on solid state relay ssr 3 phase 200a

Specification:

Input and output electro-optic isolation or transformer isolation;

Input constant current control and LED display,control signal and TTL & CMOS logic is compatible;

Bidirectional controlled sillion or unidirectional controllable counter-parallel output, zero electric current opening zero electric current shutdown

Power solid state uses the SCR chip counter-parallel output and working is stable;

Buit-in resistance-capacitance absorbing circuit,dead zone voltage and small harmonic interference;

Higher than of 2.5KV safe isolation voltage between the input output and ledger wall’s;

Small volume,small input power, non-contact, sparkless, noiseless, non-machinery wear, anti-vibration and the long life

Main Application:

• Industrial automation installament

•Computer periphery connection.

•Illumunation, stage lighting control.

•Electric stove, heating, warm control.

•Street light, signal light, traffic light,etc.

•AC motor control

•Intermediate relay, solenoid valve control.

• Numerical control machinery, external guidance system.

• Color photo enlargement, film processing equipment, injection machinery.

•Automatic fire control and security system.

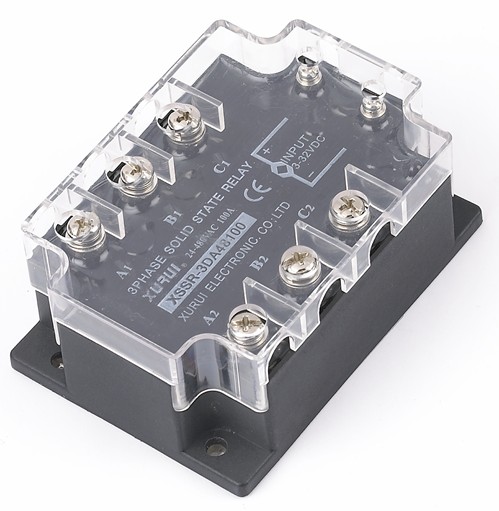

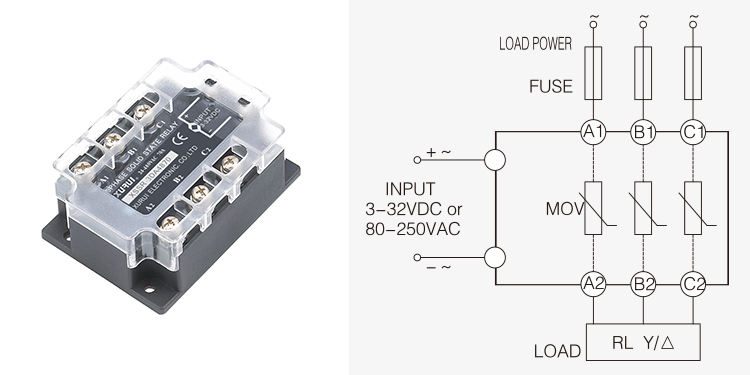

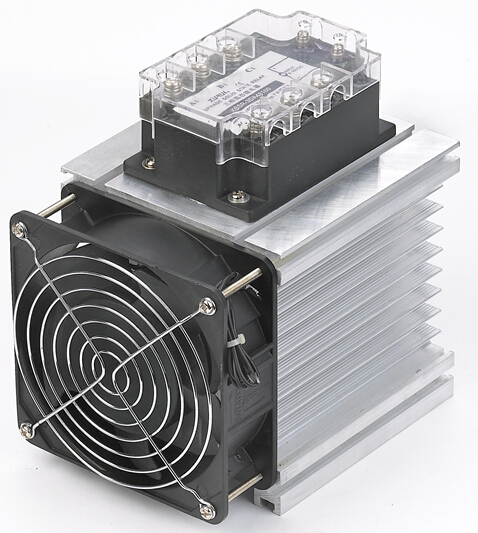

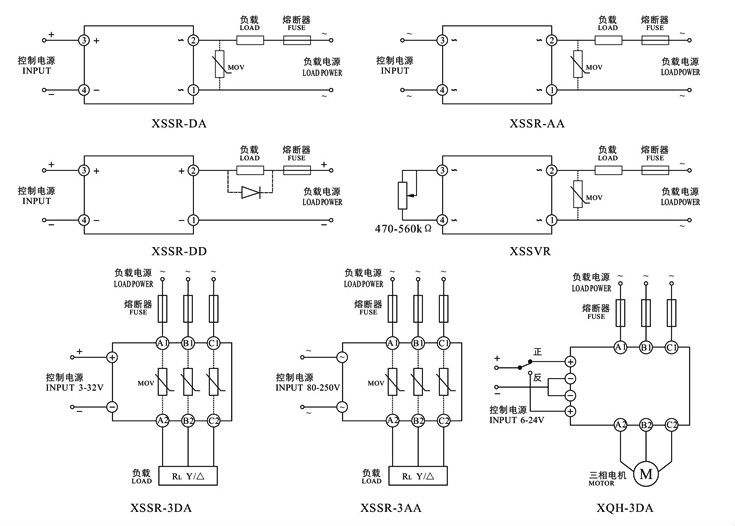

Solid state relay connection diagram:

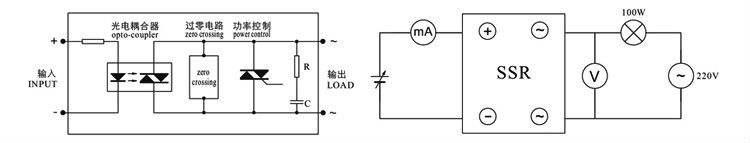

DA Series Interior Schematic Diagram and basic property test:

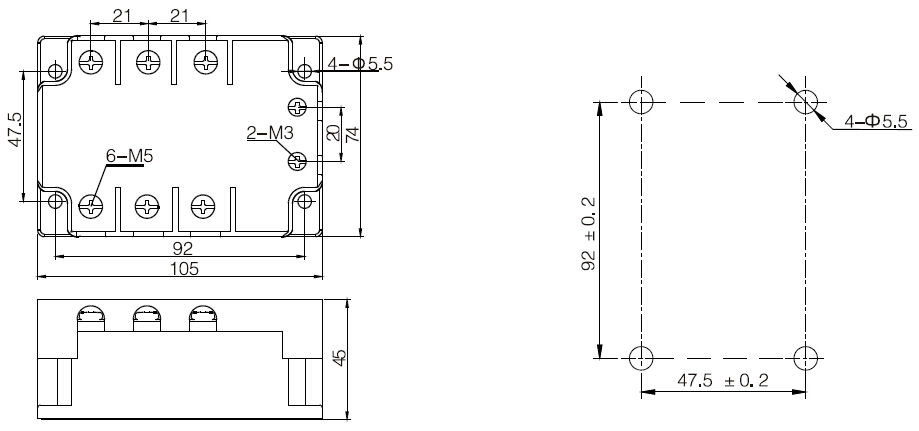

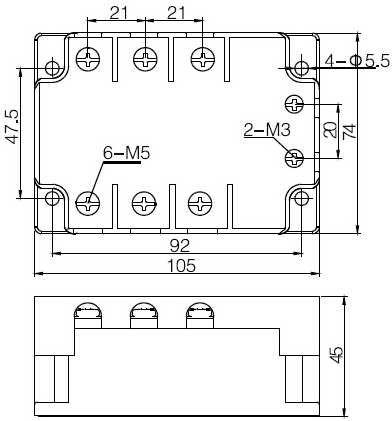

Technical Specification & Diemsnion Drawing:

Product Model XSSR-3DA--W4 XSSR-3AA-W4 Control Voltage 3-32VDC  80-250vac Control Current 10-30mA  10-30mA Reverse Voltage 32VDC    / Guarantee close voltage 1VDC  30VAC Guarantee open voltage 3VDC  80VAC Load Voltage 24-480VAC

Load max current 75A-200A Load mini current 0.1A Breakover voltage ≤2VAC Output leakage current ≤8mA Medium withstand voltage ≥2500VAC Insulating resistance ≥100MΩ Switching time ≤10mS Frequency range 50-60HZ Operating temperature -20-70°c Load current safety factor resistive load 50-60% inductive load 30-40%

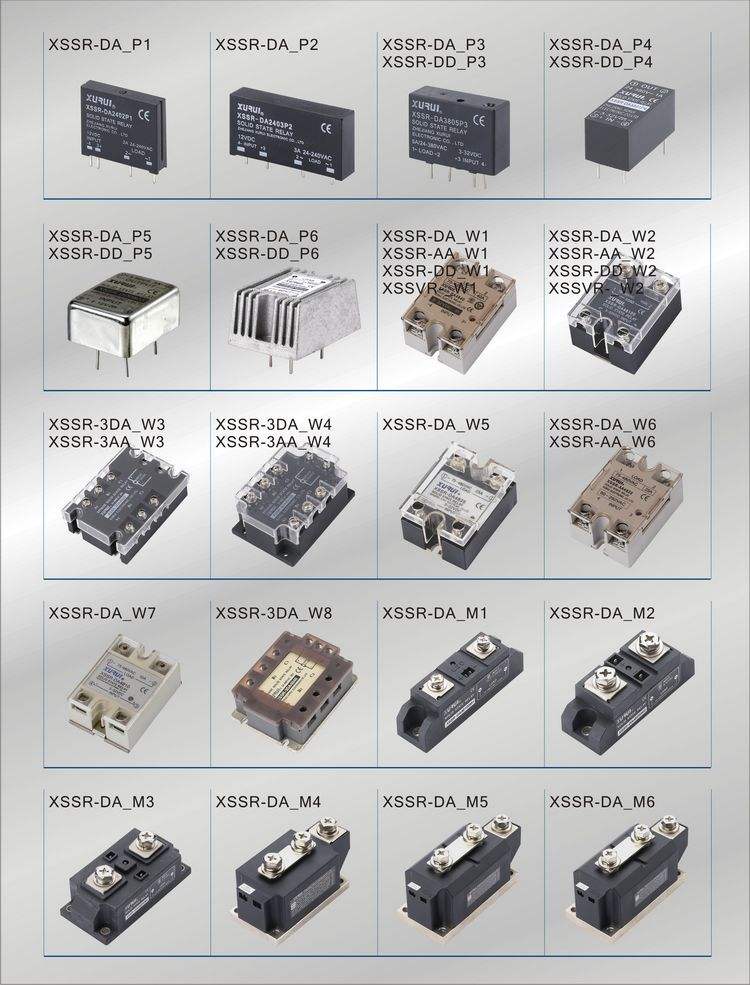

Our Solid State Relay Full Models:
