Description

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

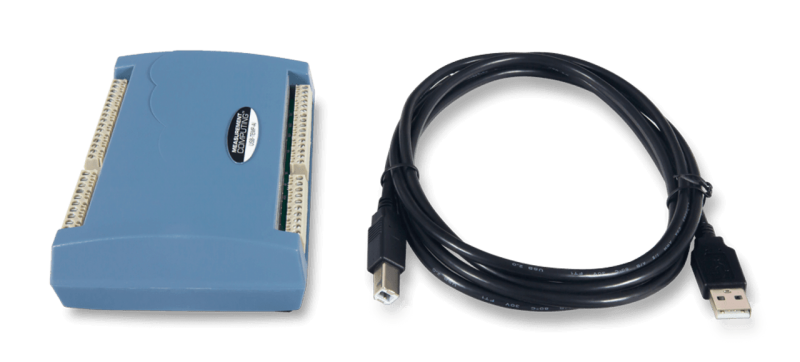

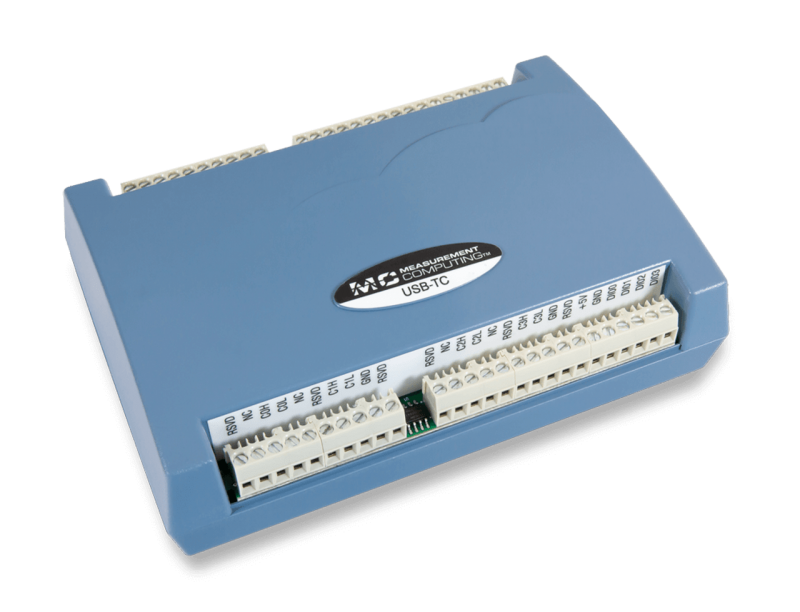

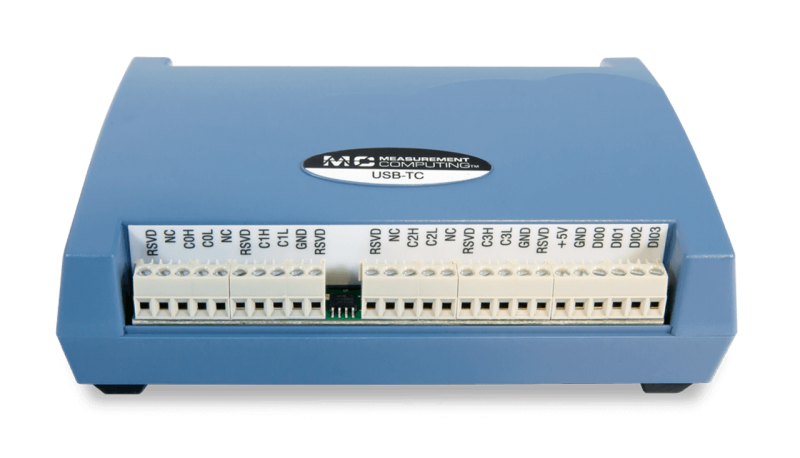

The USB-TC features eight, 24-bit analog inputs for precise thermocouple measurements, 2 S/s/ch sample rate, and 8 digital I/O.

The USB-TEMP features eight, 24-bit analog inputs for precise thermocouple measurements, 2 S/s/ch sample rate, and 8 digital I/O that supports thermocouple, RTD, thermistor, and semiconductor sensor types.

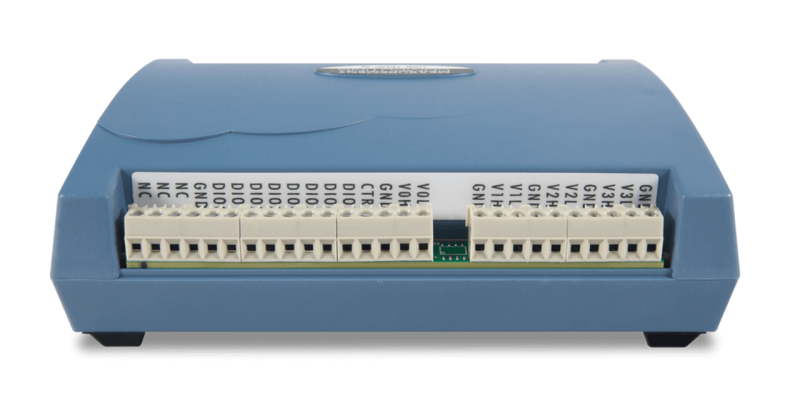

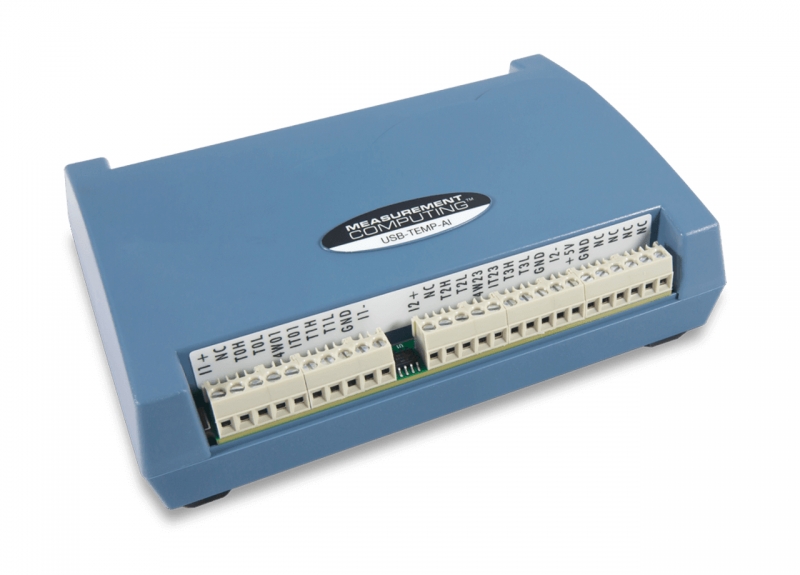

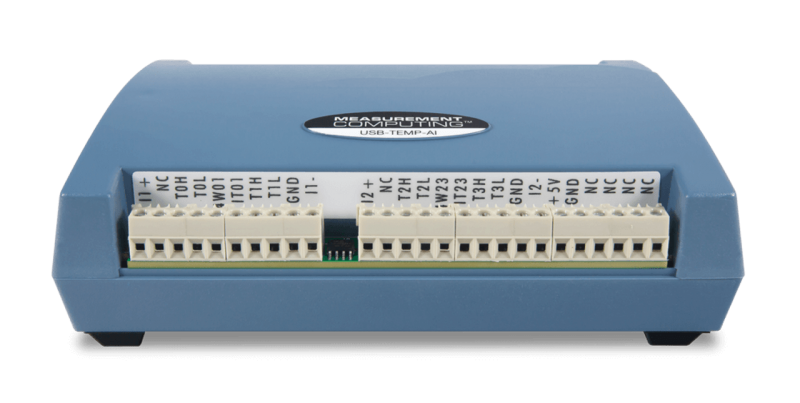

The USB-TEMP-AI also features eight, 24-bit analog inputs and a 2 S/s/ch sample rate. Four channels can be configured to measure various temperature sensors including thermocouples, RTDs, thermistors, and semiconductor sensors. The last four channels are capable of measuring voltage and offer the following input ranges; ±10, ±5, ±2.5, ±1.25 V. Eight digital I/O and one counter input are also provided.

Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.

OEM/Embedded Customers- please contact our sales department for volume pricing and assistance with your application.

Features

• Eight DIFF analog inputs
• 24-bit resolution
• USB-TC: Eight thermocouple inputs (types J, K, R, S, T, N, E, and B)
• USB-TEMP: Eight temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor)
• USB-TEMP-AI: Four temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor) plus four voltage inputs (±10 V, ±5 V, 0-10 V, 0-5 V input ranges)
• 2 S/s/ch sample rate
• Eight digital I/O
• One counter input (USB-TEMP-AI only)

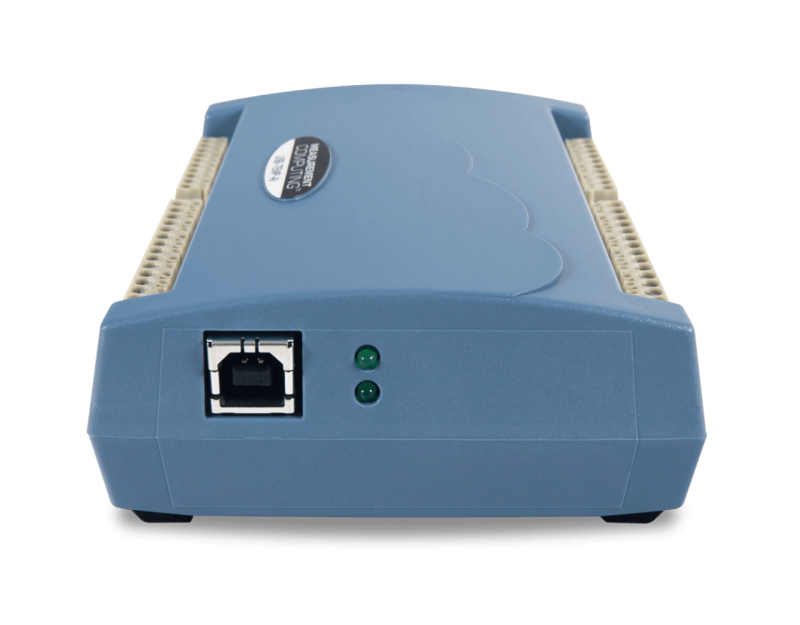

• No external power required
