Description

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

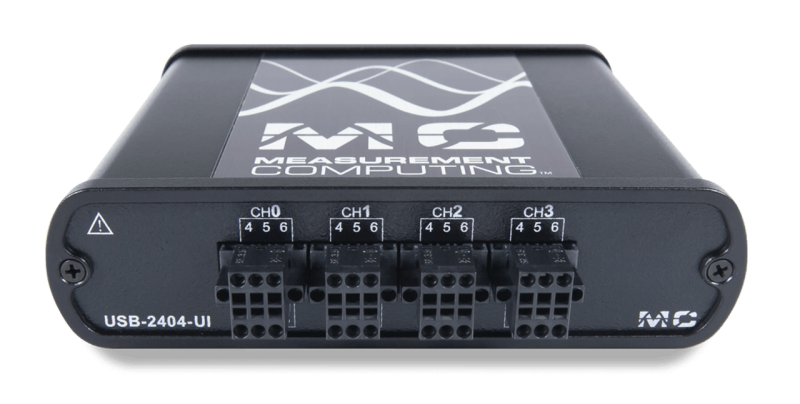

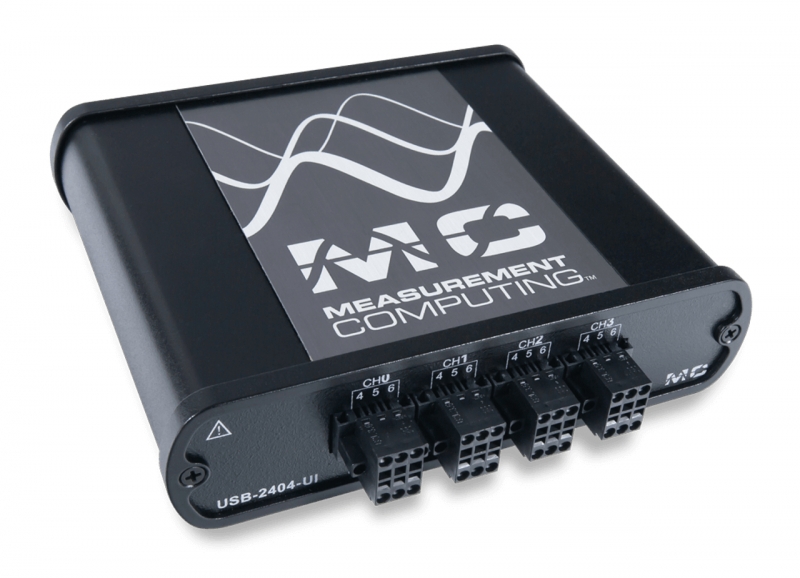

The USB-2404-UI features four simultaneous analog inputs capable of measuring voltage, current, thermocouples, RTDs, resistance, and bridge-based sensors. This device features an A/D per channel and includes channel-to-channel and system to host isolation.

Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, and Python™.



Features

  • 4 simultaneous analog inputs
  • 24-bit resolution
  • 100 S/s/ch sample rate
  • Universal inputs measure voltage, current, thermocouples, RTDs, resistance, and bridge-based sensors
  • ±60 V, ±15 V, ±10 V, ±4 V, ±1 V, ±125 mV input ranges
  • 250 Vrms channel to channel isolation
  • No external power required

  • Product Compliance:
    • HTC: 8471.80.9000
    • ECCN: EAR99

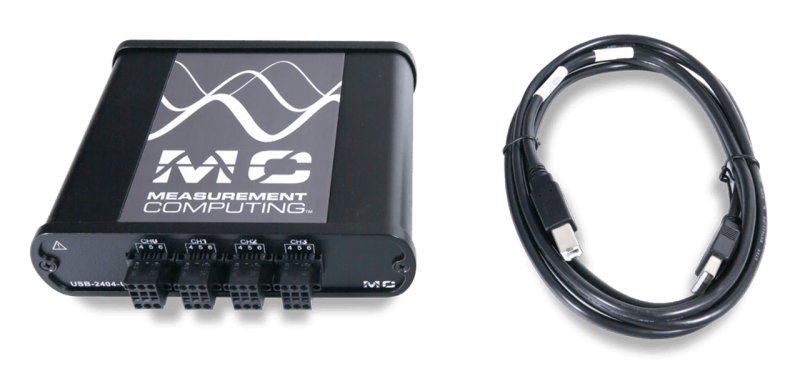

What's Included
  • USB-2404-UI
  • USB cable
  • Printed insert: Software Quick Start
  • MCC packaging assembly/foam, etc.
Software

Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.

For a full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.

DASYLab can be purchased directly from MCC.

For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™,  and Python™.

Custom Applications without Programming: DASYLab® - Optional

Icon-Based Data Acquisition, Graphics, Control, and Analysis Software

DASYLab is an optional software package that offers real-time analysis, control, and the ability to create custom applications without programming. DASYLab is ideal for users that need more functionality than DAQami provides.

Supported Operating Systems: Windows® 11/10/8/7.

DASYLab can purchased directly from MCC starting at $499.

Learn More or Purchase DASYLabDASYLab Data Sheet

Programming and Driver Support - Included

MCC programming and driver support is extensive and features comprehensive libraries and example programs for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, and Python™.

Learn More About MCC Programming and Driver SupportDownload Programming and Driver Support

To learn more about the complete software ecosystem, visit the MCC software page.
