Description

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

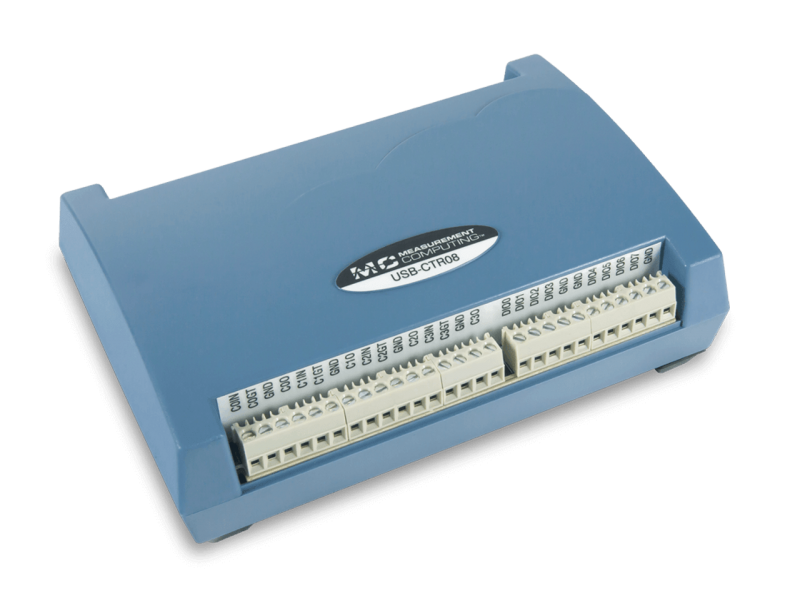

The USB-CTR series are high-speed counter/timer devices and feature up to eight counter inputs, 48 MHz input frequency, up to 64-bit resolution, up to 8 MB/s scan rates, multiple counter modes, four pulse-width modulation (PWM) timers, and eight digital I/O.

Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.

OEM/Embedded Customers- please contact our sales department for volume pricing, OEM/board-only versions of these devices, and assistance with your application.

Features

• USB-CTR04: Four counter inputs
• USB-CTR08: Eight counter inputs
• 48 MHz maximum input frequency
• Software-selectable resolution up to 64-bits
• Aggregate scan rate of 8 MB/s
• Supports Totalize, Period, Pulse width, and Timing counter input modes
• Four independent pulse-width modulation (PWM) timers
• Eight bit-configurable digital I/O channels
• Synchronous high-speed reads of digital and counter inputs
