이것은 라즈베리 파이에 사용되는 초음파 거리 센서 작동 학습 키트입니다. 키트에는 약 25가지로 나눌 수 있는 150개 이상의 구성 요소와 전자 모듈이 포함되어 있습니다. 우리는 귀하가 학습할 수 있도록 가이드(113쪽)와 지원 실험 코드 프로그램을 정성껏 준비했습니다. 가이드북에는 18개의 실험이 포함되어 있으며 코드는 두 가지 버전(병 및 구렁이)으로 나뉩니다.

Lessons:

About the Raspberry Pi

Raspberry Pi Pin Numbering Introduction

Raspberry Pi GPIO Library Introduction

How to Use wiringPi and RPi.GPIO

Lesson 1 Blinking LED

Lesson 2 Active Buzzer

Lesson 3 Tilt Switch

Lesson 4 Controlling an LED by Button

Lesson 5 Relay

Lesson 6 LED Flowing Lights

Lesson 7 Breathing LED

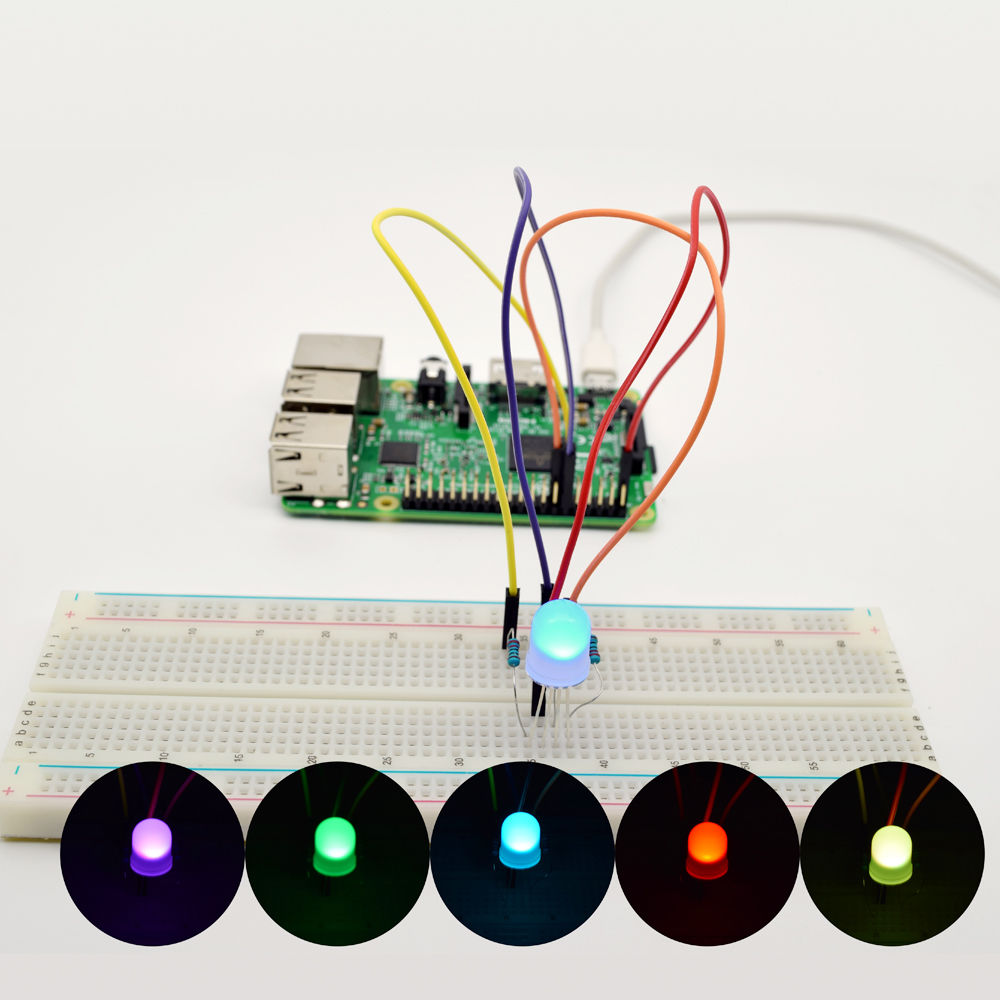

Lesson 8 Controlling an RGB LED with PWM

Lesson 9 7-Segment Display

Lesson 10 4-Digit 7-Segment Display

Lesson 11 LCD1602

Lesson 12 A Simple Voltmeter

Lesson 13 Measuring Distance

Lesson 14 Photoresistor

Lesson 15 Thermistor

Lesson 16 Controlling an LED Through LAN

Lesson 17 DC Motor

Lesson 18 How to Control A Servo

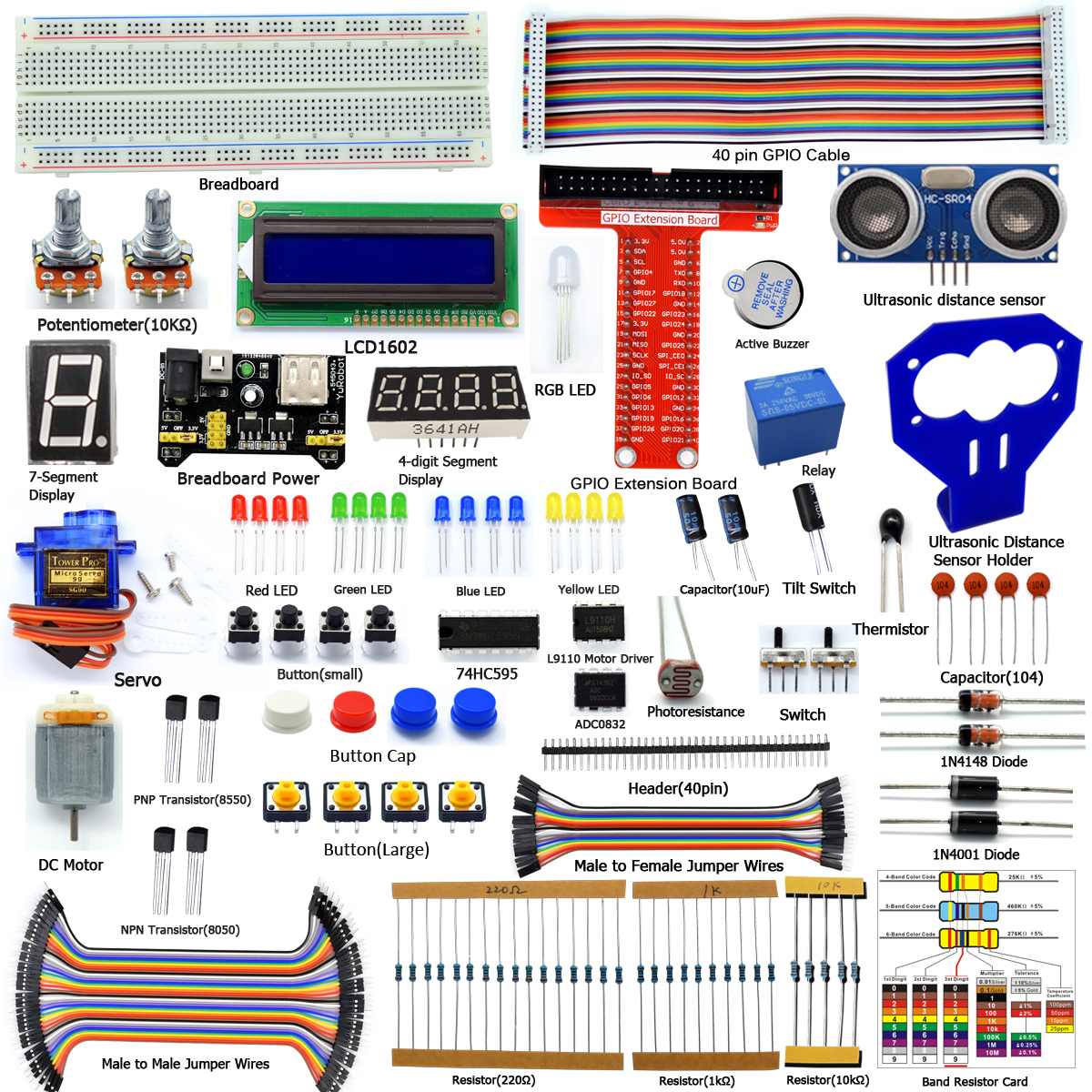

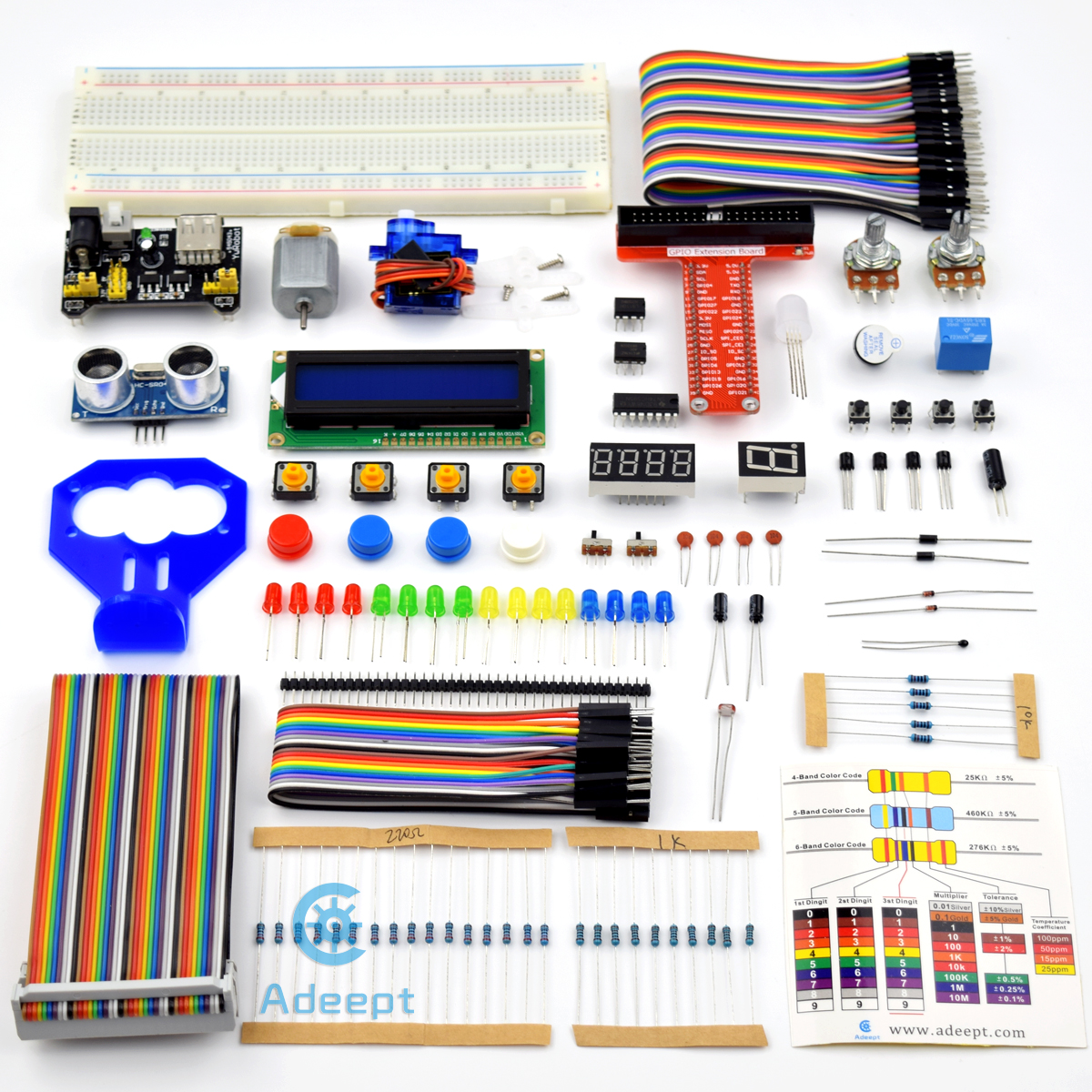

Package List:

1x DC Motor

1x Servo

1x Relay

1x Ultrasonic distance sensor

1x Ultrasonic distance sensor holder

1x L9110 motor driver

1x LCD1602

1x ADC0832

1x 74HC595

1x 7-Segment Display

1x 4-bit 7-segment display

1x Light Sensor (Photoresistor)

1x Analog Temperature Sensor (Thermistor)

1x 40 pin GPIO Extension Board

1x 40 pin GPIO Cable

1x Breadboard Power Supply Module

1x Active Buzzer

1x Tilt switch

2x Switch

1x RGB LED

4x Red LED

4x Green LED

4x Yellow LED

4x Blue LED

16x Resistor(220Ω)

10x Resistor(1kΩ)

5x Resistor(10kΩ)

4x Capacitor (104)

2x Capacitor (10uF)

4x Button (large)

4x Button (small)

1x Button cap (red)

1x Button cap (white)

2x Button cap (blue)

2x NPN Transistor (8050)

2x PNP Transistor (8550)

2x 1N4148 Diode

2x 1N4001 Diode

2x Potentiometer (10KΩ)

1x Breadboard

40x Male to Male Jumper Wires

20x Male to Female Jumper Wires

1x Header (40pin)

1x Band Resistor Card

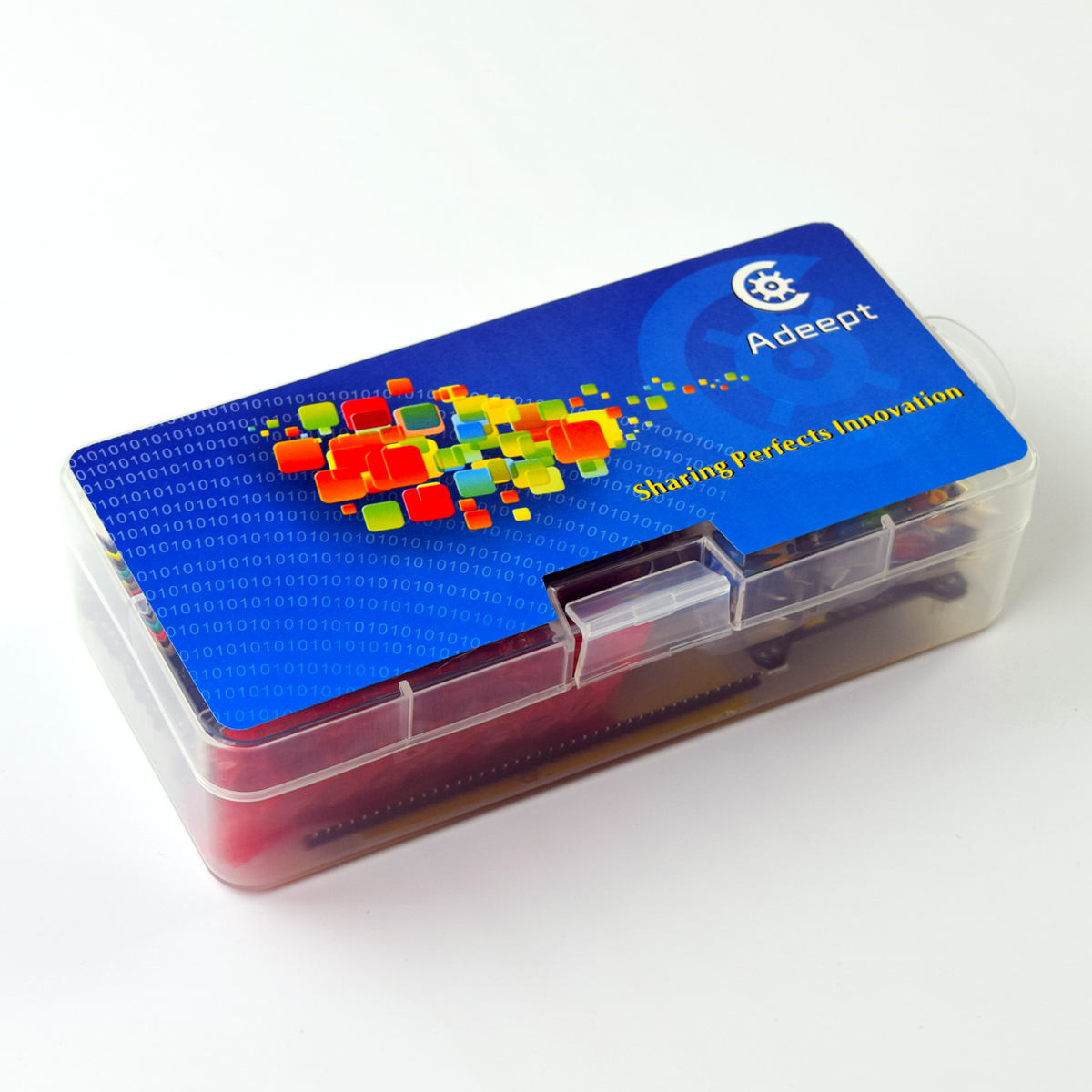

1x Project Box
