INTRODUCTION

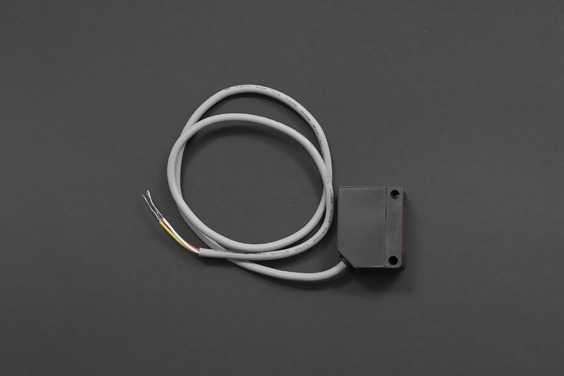

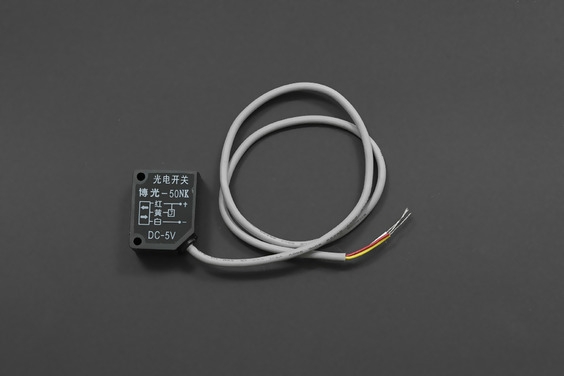

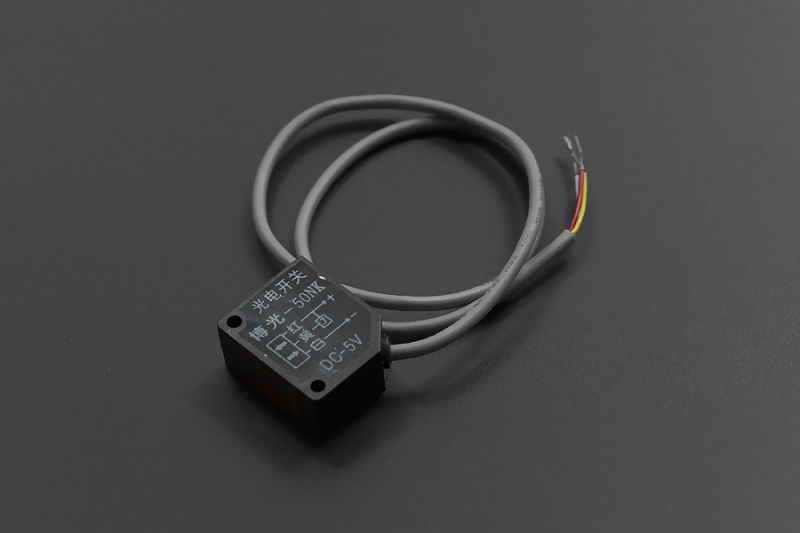

This adjustable infrared sensor features a high-sensitivity photo reflector to perform distance detection functions, ranging from 3cm to 40cm. When the infrared light emitted by the emitter gets reflected on a surface that blocked it, the phototransistor can pick up the signal for distance calculation. Also, a potentiometer for adjustment is arranged for easy and clear use. Compared with a regular infrared sensor switch, it has advantages in distance, low interference by visible light, affordable, easy to assemble, easy to use, and can be widely used in robot obstacle avoidance, assembly lines, and many other occasions.

The obstacle detection distance can be adjusted with a potentiometer in the copper screw, once done adjusting(e.g. max 60cm), the sensor will output low flat within the effective distance (e.g. obstructions at 40cm & 10cm ) to the microcontroller.

SPECIFICATION

Power supply: 5V

Control Outout：100mA when supply 5V

Circuit consume： <25mA

Response time: <2ms

Direction: ≤15°

Range: 3~40cm adjustable for opacity and transparent objects

Shell marterial:plastic

A low voltage output will be given when an object is in its detecting scope

When connecting to MCU pins, you need to add a 1~10K Ohm resistor for pull-up

Sharp： 30mm(length) x 20mm(wide) x 13mm(thickness) with a 45cm lead wire

DOCUMENTS

https://wiki.dfrobot.com/Adjustable_Infrared_Sensor_Switch_SKU_SEN0164#target_3

SHIPPING LIST

Adjustable Infrared Sensor x1
